Similar to the web-based Bauhub environment, the Bauhub Android app also allows users to add different types of annotations to files, such as lines, shapes, text, and other markings.

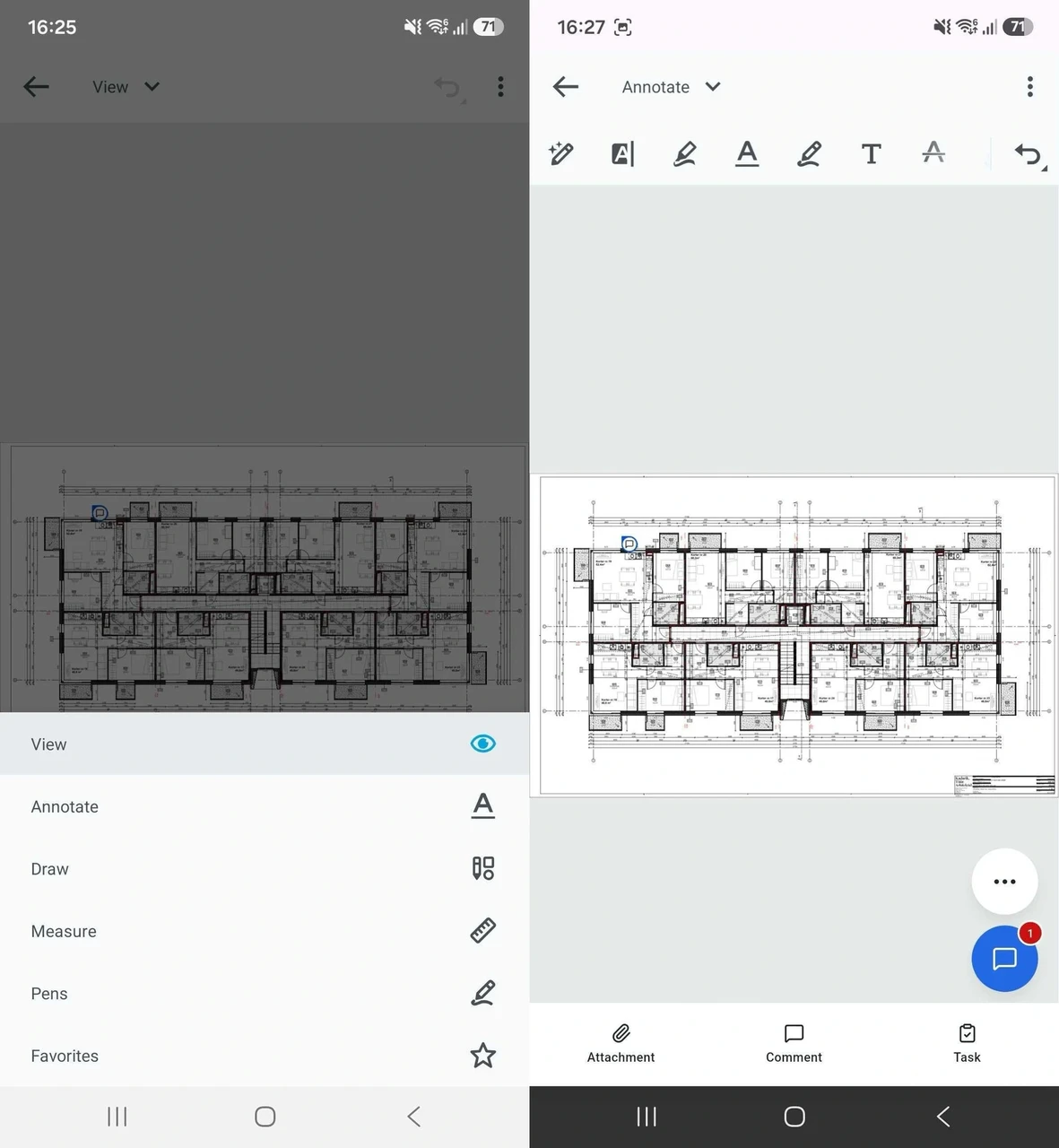

When opening a file, a menu is displayed at the top of the screen where different working modes can be selected. To add annotations, select the “Annotate” mode. A toolbar will then appear, allowing you to add notes, shapes, and other markings to the file.

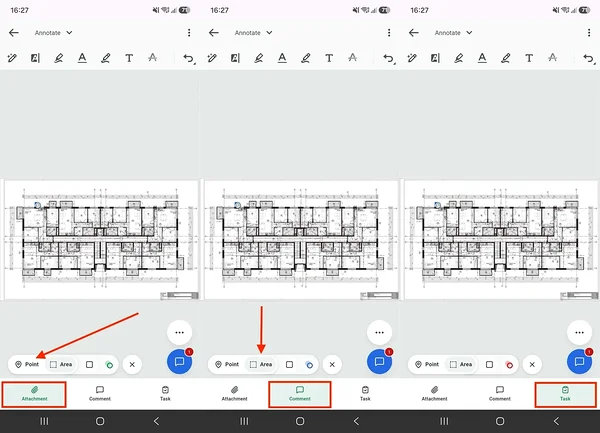

At the bottom of the screen, the options “Attachment”, “Comment”, and “Task” are displayed. When creating a marking, you can choose whether the annotation is added as a point or as an area, and you can also change its shape and color.
1. By selecting “Attachment”, it is possible to add a file from the existing project directly onto the drawing;
2. By selecting “Comment”, you can add a comment and, if necessary, mention a user by using the “@” symbol. It is also possible to attach a file from the existing project to the comment;
3. By selecting “Task”, the task creation view opens, where you must select the board and fill in the required task fields.

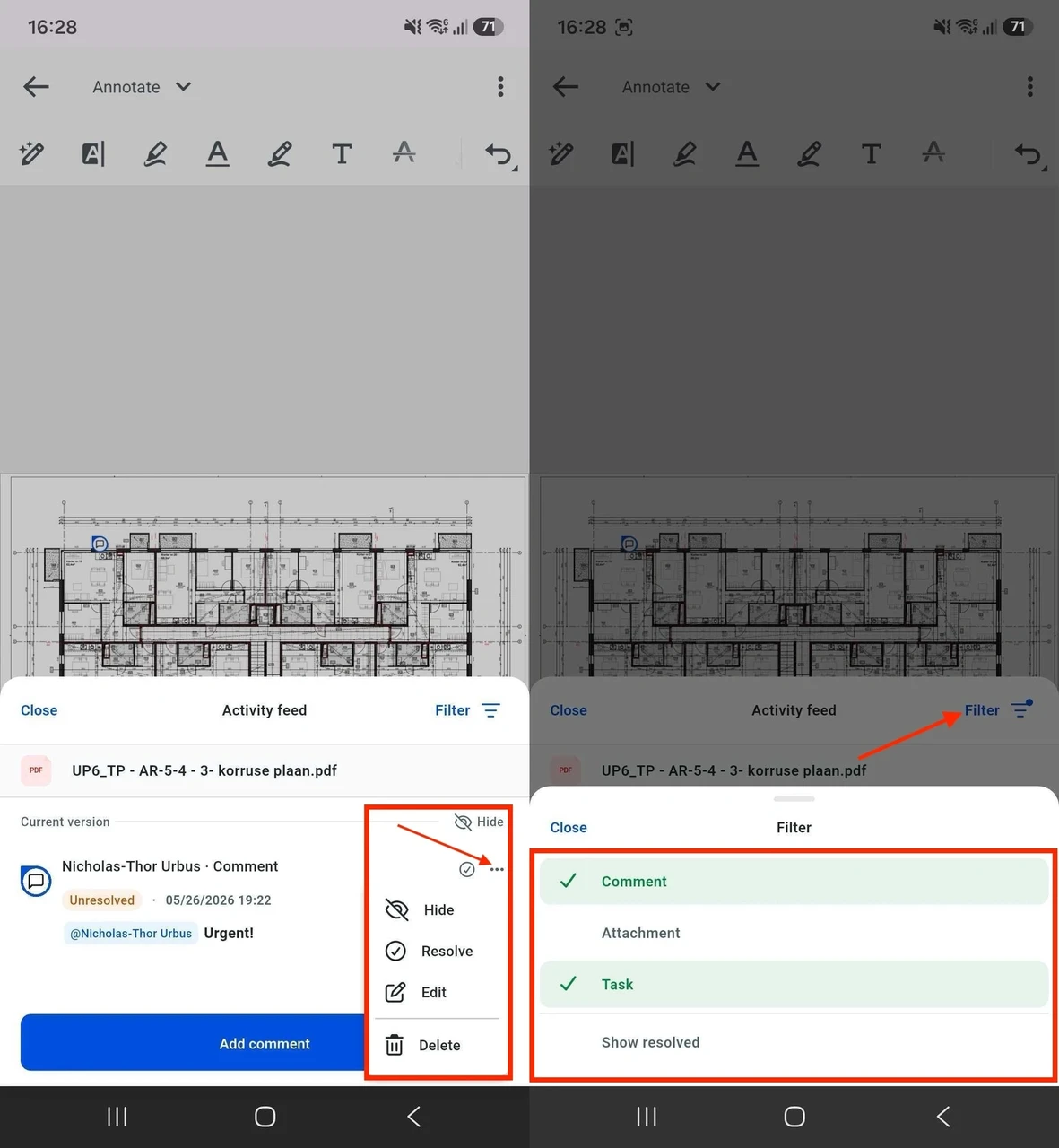

All added activities are displayed in the Activity Feed, which can be opened using the blue button located in the bottom-right corner of the screen. In the Activity Feed, activities can be filtered, hidden, edited, resolved or deleted.
To display resolved activities, open the “Filter” view and select “Show resolved”.
When opening a file, a menu is displayed at the top of the screen where different working modes can be selected. To add annotations, select the “Annotate” mode. A toolbar will then appear, allowing you to add notes, shapes, and other markings to the file.
1. By selecting “Attachment”, it is possible to add a file from the existing project directly onto the drawing;
2. By selecting “Comment”, you can add a comment and, if necessary, mention a user by using the “@” symbol. It is also possible to attach a file from the existing project to the comment;
3. By selecting “Task”, the task creation view opens, where you must select the board and fill in the required task fields.
To display resolved activities, open the “Filter” view and select “Show resolved”.
